Product Description

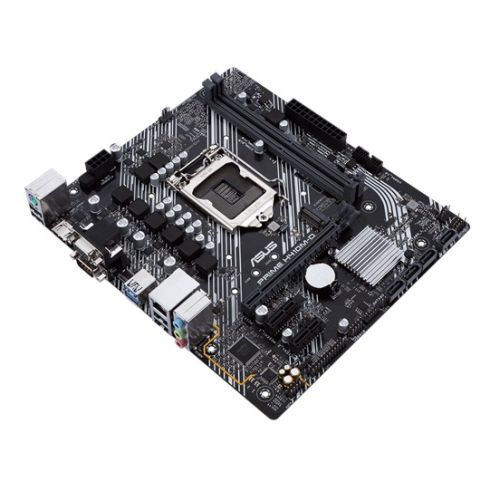

Asus PRIME H410M-D, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI, COM Port, M.2
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
Intel 1200
Chipset
Intel H410
CPU Support
Click here for CPU support
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
RAM Speeds
2933/2800/2666/2400/2133 MHz
Maximum Memory
64GB
Graphics
Supports Intel HD Graphics
Graphics Ports
1 x VGA
1 x HDMI
Multi-GPU Support
-
PCI/PCI Express
1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
Storage
4 x SATA III
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID
-
Wireless
-
LAN
GB LAN
Audio
Realtek ALC887 7.1-Channel High Definition Audio CODEC
USB Ports Supported
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
Back Panel I/O Ports
1 x PS/2 keyboard/mouse combo
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
1 x COM port
3 x Audio jacks
Internal I/O Connectors
1 x CPU Fan
1 x Chassis Fan
1 x USB 3.2 Gen1
1 x USB 2.0
1 x M.2 Socket 3 with M Key
1 x LPT header
4 x SATA 6Gb/s
1 x S/PDIF out
1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x Front audio
1 x Clear CMOS jumper

1 x System panel
1 x Speaker
Accessories
I/O Shield
2 x SATA 6Gb/s cables
1 x M.2 Anchor
Additional Features
See Overview
Package Type
Retail
Package Weight
0.8400 kg
Warranty
3 Years
